Send InquiryStainless Steel Single Ferrule Female Branch Tee
Stainless Steel Single Ferrule Female Branch Tee Specification
- Application
- Instrumentation, Hydraulic, Pneumatic, Oil & Gas Industries
- End Connections
- Female Branch with single ferrule design
- Corrosion Resistance
- Excellent
- Connection Type
- Threaded Female
- Leakage
- Zero leakage design
- Pressure Rating
- Up to 6000 PSI
- Temperature Range
- -50°C to +400°C
- Media
- Suitable for gas, liquid, oil, air, steam
- Packing
- Retail or bulk as per client requirement
About Stainless Steel Single Ferrule Female Branch Tee
METRIC
| Part No. | Tube O.D. T mm |
P (NPT) |
E mm |
h mm | H mm | F | G | l | L | L1 |
|---|---|---|---|---|---|---|---|---|---|---|
| MPMBT-03-02 | 3 | 1/8 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 17.0 | 23.6 | 17.8 |
| MPMBT-03-04 | 3 | 1/4 | 2.4 | 12.7 | 12 | 12.9 | 15.3 | 18.0 | 24.6 | 23.4 |
| MPMBT-04-02 | 4 | 1/8 | 2.4 | 12.7 | 12 | 13.7 | 16.1 | 18.8 | 25.4 | 18.8 |
| MPMBT-06-02 | 6 | 1/8 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 18.8 |
| MPMBT-06-04 | 6 | 1/4 | 4.8 | 14.2 | 14 | 15.3 | 17.7 | 19.6 | 27.0 | 23.4 |
| MPMBT-08-02 | 8 | 1/8 | 4.8 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 19.8 |
| MPMBT-08-04 | 8 | 1/4 | 6.4 | 17.5 | 16 | 16.2 | 18.6 | 21.3 | 28.8 | 24.4 |
| MPMBT-10-04 | 10 | 1/4 | 7.1 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 28.2 |
| MPMBT-10-06 | 10 | 3/8 | 7.9 | 20.6 | 19 | 17.2 | 19.5 | 23.9 | 31.5 | 28.2 |
| MPMBT-12-04 | 12 | 1/4 | 7.1 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 | 28.2 |
| MPMBT-12-06 | 12 | 3/8 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 | 28.2 |
| MPMBT-12-08 | 12 | 1/2 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 | 33.0 |
| MPMBT-16-06 | 16 | 3/8 | 9.5 | 25.4 | 25 | 24.4 | 22.0 | 27.9 | 38.0 | 30.2 |
| MPMBT-16-08 | 16 | 1/2 | 11.9 | 25.4 | 25 | 24.4 | 22.0 | 27.9 | 38.0 | 35.1 |
| MPMBT-20-12 | 20 | 3/4 | 15.9 | 31.8 | 32 | 26.0 | 22.0 | 34.5 | 44.6 | 41.7 |
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Stainless Steel Single Ferrule Fittings Category
Stainless Steel Single Ferrule Female Run Tee
Technique : Machined, Other
Color : Silver
Grade : Stainless Steel
Product Type : Other, Single Ferrule Fitting

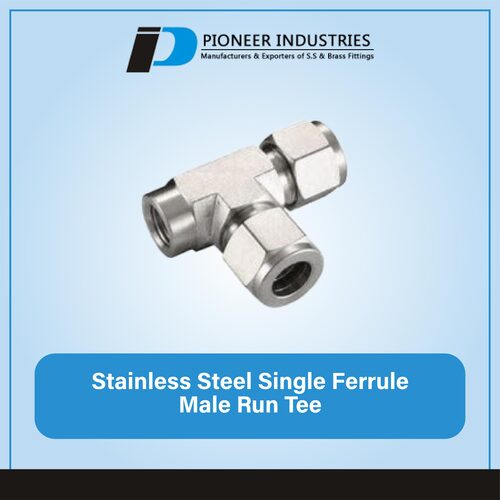

Stainless Steel Single Ferrule Male Run Tee
